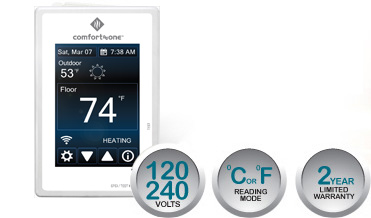

Intelligent programming!
- Touch Screen
- Quick configuration (preprogramming)
- Up to 4 programmable settings per day
- Accepts 3-point programming: comfort, energy efficiency (absence) and vacation
- Elegant and stylish control unit
- Easy to program
- Simplifies electrical cabling
- Touch Screen
- Personalized programming or preprogramming
- Two operating modes (automatic or manual)
- High-precision floor sensor
- Two temperature sensors (floor sensor and remote thermostat control)
- Protection in case of defect assured by a grounded differential circuit-breaker
- Reading modes: °C or °F, 24 hours or 12 hours
| Thermostat | |
| Power supply: | 120/240 V courant alternatif, 50/60 Hz |
| Maximum load: | Class A (5 mA release) |
| Power supply: | 1 800 W at 120 VAC 3 600 W at 240 VAC |
| Ground circuit-breaker: | Class A (5 mA release) |
| Display range: | 0 to 60°C (32 to 140°F) |
| Setting range: | 4 to 37°C (40 to 99°F) |
| Accuracy: | -17 °C (± 0,9 °F) |
| Storage temperature: | -17 to 49°C (0 to 120°F) |
| Sensor: | Thermistor, 10k NTC, double insulation |
| Memory: | Programming retained indefinitely. The time and date must be reset if the current is cut for more than 30 minutes. |
| Homologations : | ETL, Control No. 3037530 Compliance with standards UL 873, UL 943, CSA C22.2 No. 24 and CAN/CSA C22.2 No. 144 |
If you have a large room that requires a system of more than 15 A, we recommend that you install slave units. The slave units are specially designed to avoid installation of numerous thermostats. Each expansion unit controls its section of the floor and receives its instructions from the main thermostat. This allows a single thermostat to cover large rooms that require a system of more than 15 A (maximum of 9 slave units per thermostat).
